Documentação do usuário

SIX

A conexão de um terminal de pagamento SIX permite oferecer um fluxo de pagamento fluido a seus clientes e facilitar o trabalho de seus caixas.

Configuração

Pré-requisitos

  1. Install the POS IoT Six module: Activate the POS IoT Six module module to enable the payment terminal.

  2. Connect an IoT system: A Raspberry Pi or a virtual IoT system (for Windows OS only) is required to connect a SIX payment terminal to Odoo.

Configurar a forma de pagamento

  1. Enable the payment terminal in the application settings <pos/use/settings> and create a payment method for SIX terminals.

  2. Set the journal type as Bank.

  3. Fill in the Outstanding Account field.

  4. Select Terminal in the Integration field.

  5. Select SIX IOT in the Integrate with field.

  6. Click Setup Six Terminal.

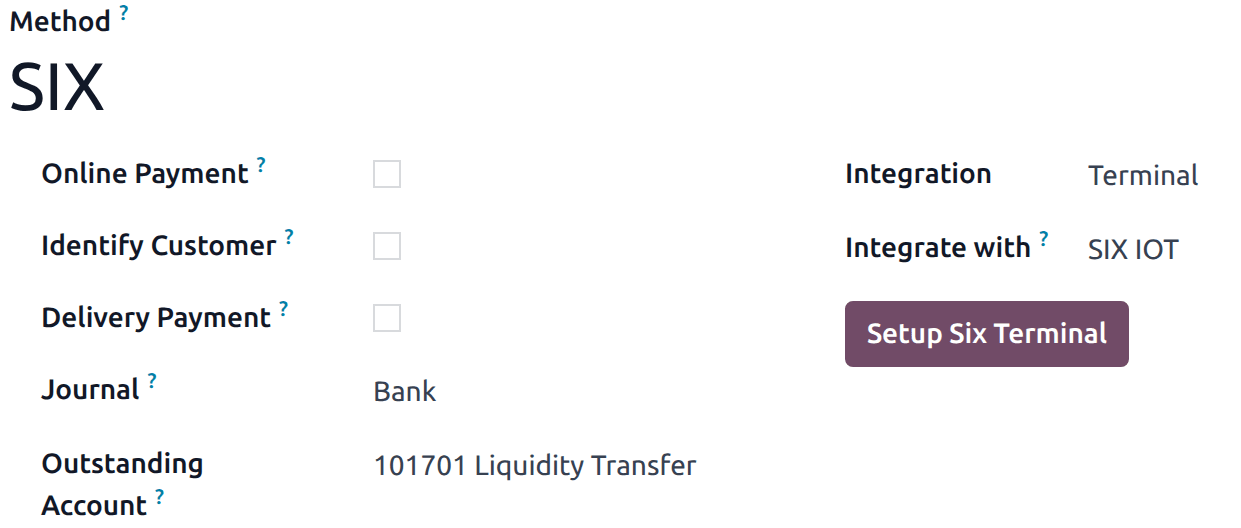

Creating a new payment method for the SIX payment terminal

Na janela modal,

  1. Click the IoT Box field and select the IoT system from the dropdown menu.

  2. Enter the Six Terminal ID (TID) provided by SIX.

  3. Select the Terminal Device from dropdown menu.

  4. Finally, click Add Terminal.

Configuring the Terminal ID for the SIX payment terminal

Vincular a forma de pagamento a um PDV

Após criar o método de pagamento, ele pode ser selecionado nas configurações do POS. Para fazer isso,

  1. Go to the POS' settings <pos/use/settings>.

  2. Add the payment method under the Payment methods field within the Payment section.
